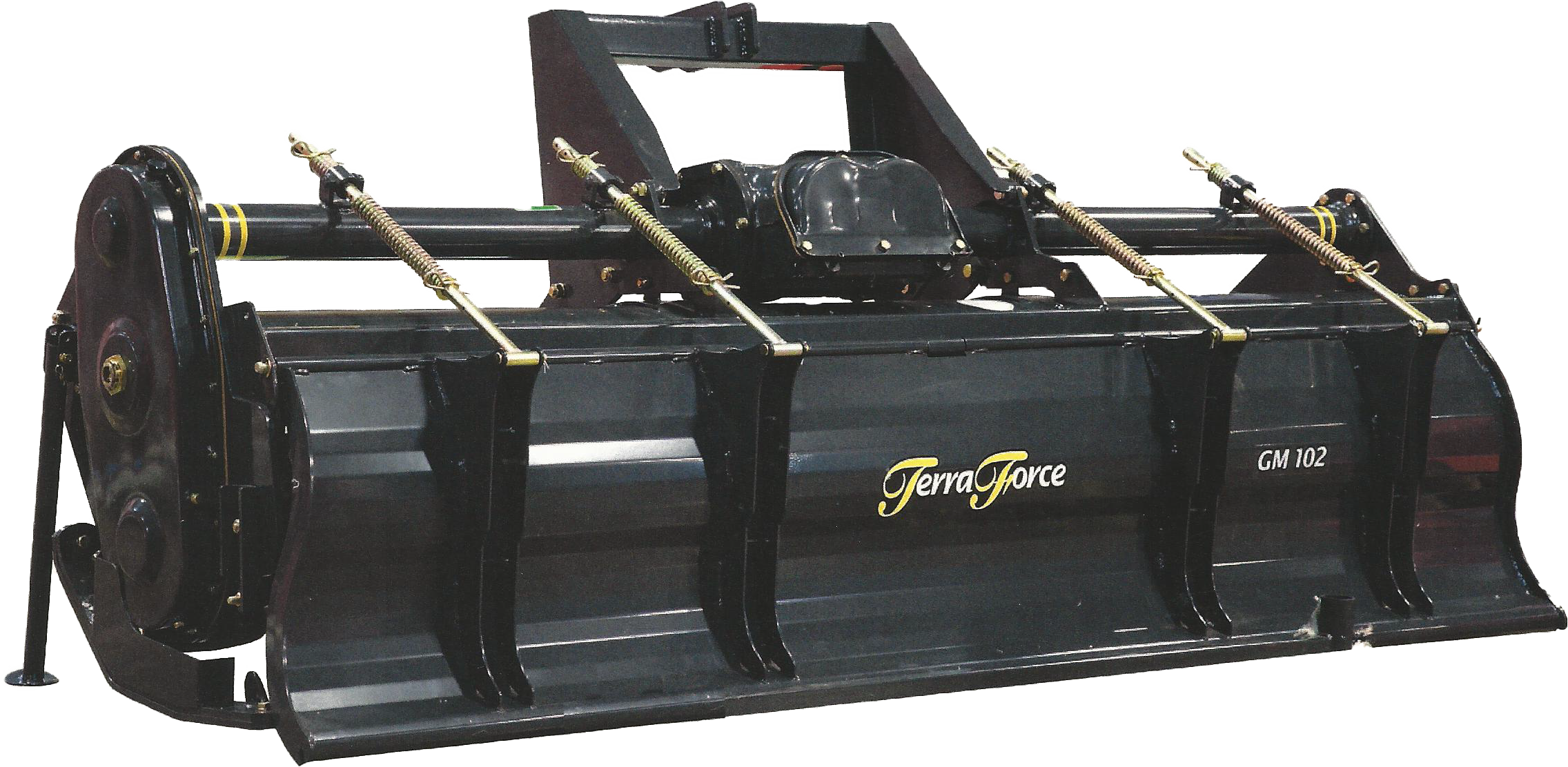

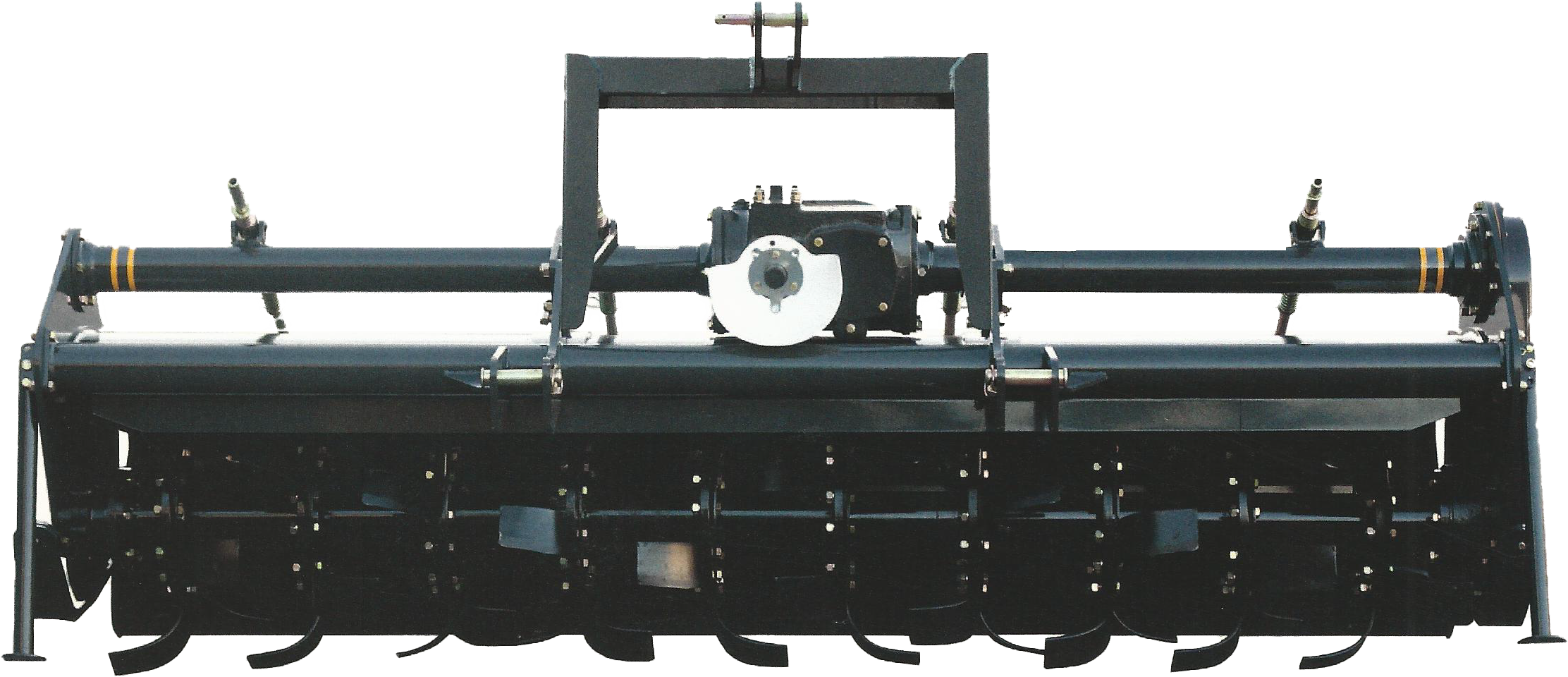

Feature of product
- Low noise, high strength spiral bevel with 4 speed gear box
- High durable spline design
- Special triple group seal system to protect bearing case from strange-material in-out
Specification
Units : Inch, Lbs, Ea
| Model | GM 080 | GM 090 | GM 102 | |
|---|---|---|---|---|
| Recommended Tractor HP | 55-85 | 65-100 | 70-125 | |
| Tiller Size | Length | 41.3 | 41.3 | 41.3 |
| Width | 87.6 | 94.9 | 106.7 | |
| height | 48.2 | 48.2 | 48.2 | |
| Weight | 1171 | 1279 | 1737 | |
| Tilling Width | 80 | 90 | 102 | |
| Tilling Depth(max) | 8 | 8 | 9.5 | |
| No. of Franges | 8 | 9 | 10 | |
| No. of Blades | 48 | 54 | 60 | |
| Hitch | Cat. Ⅱ | Cat. Ⅱ | Cat. Ⅱ | |
| Rotot Swing Diameter | 20.4 | 20.4 | 23 | |
※ Specifications, designs and dimensions are subject to change without prior notice
